In collaboration with Jimena Dorador

SEATTLE WATERFRONT PROJECT

SEATTLE ASSEMBLY HOUSE

ARCH 609

Located in Seattle, Washington the Seattle waterfront project aims to create an assembly house that can be utilized as a creative space that is integrated into the surrounding community. This building’s topographical changes allows for one cafe located on the ground floor of the building and a restaurant on the third, which doubles as a secondary entrance. The intention behind the design was to integrate the streetscape from the first floor to the third, allowing for pedestrians to walk through the building.

MAIN ENTRANCES

CONCEPT DIAGRAMS

CONNECT PROGRAM

BUILDING DIAGRAMS

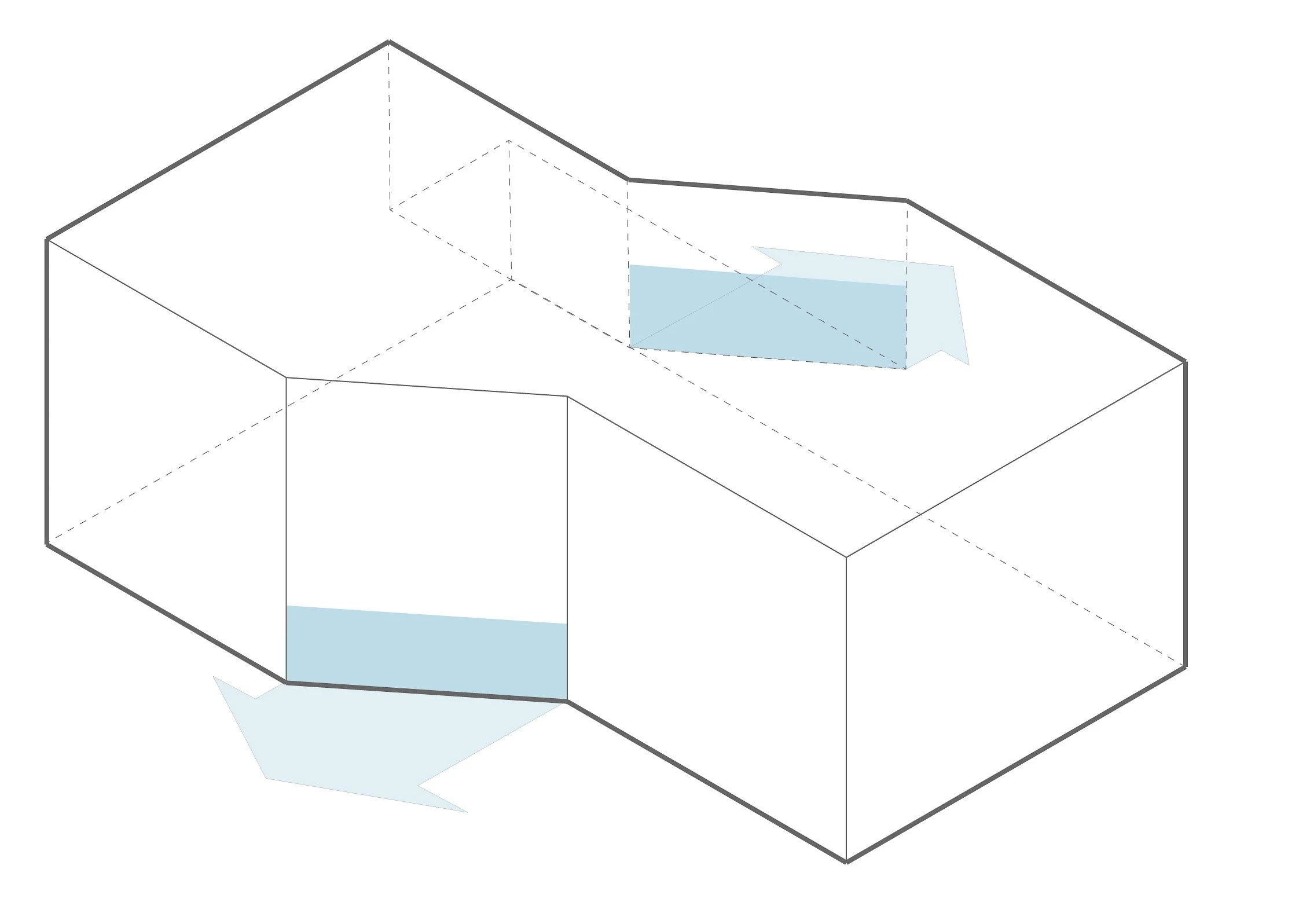

PATIO ENTRANCES

FORM

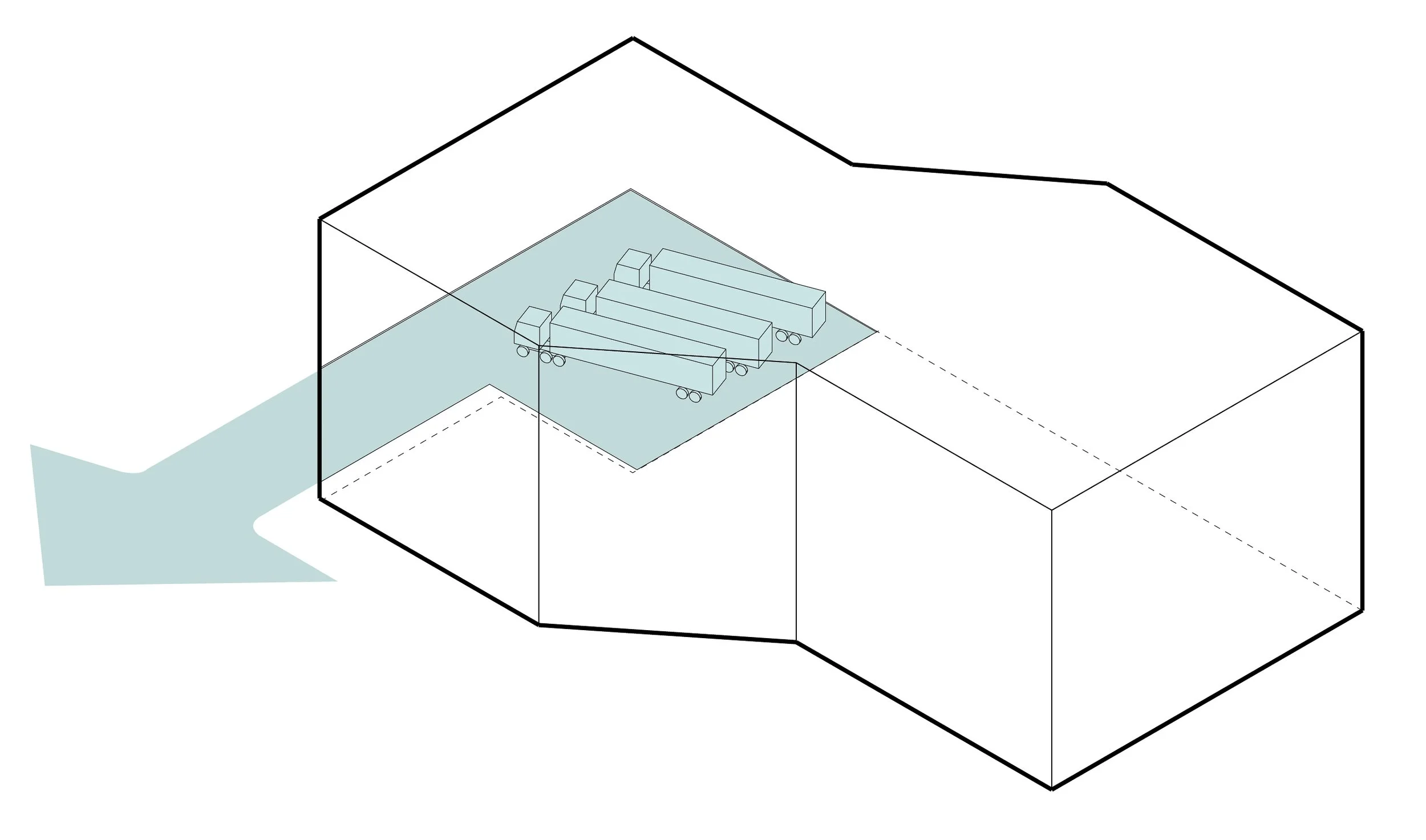

TRUCK LOADING

BUILDABLE AREA

CONNECT SITE

HVAC

EGRESS

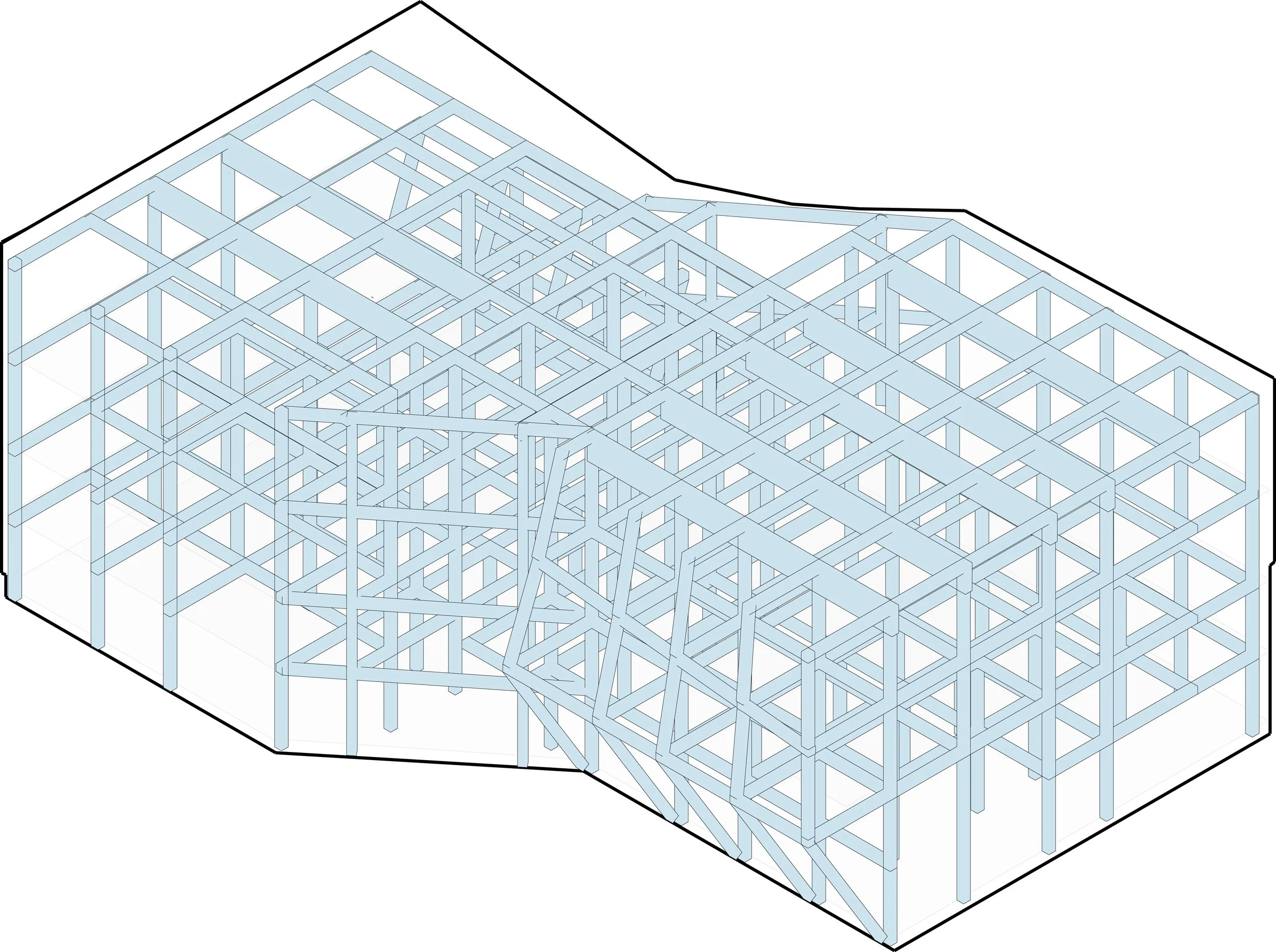

STRUCTURE

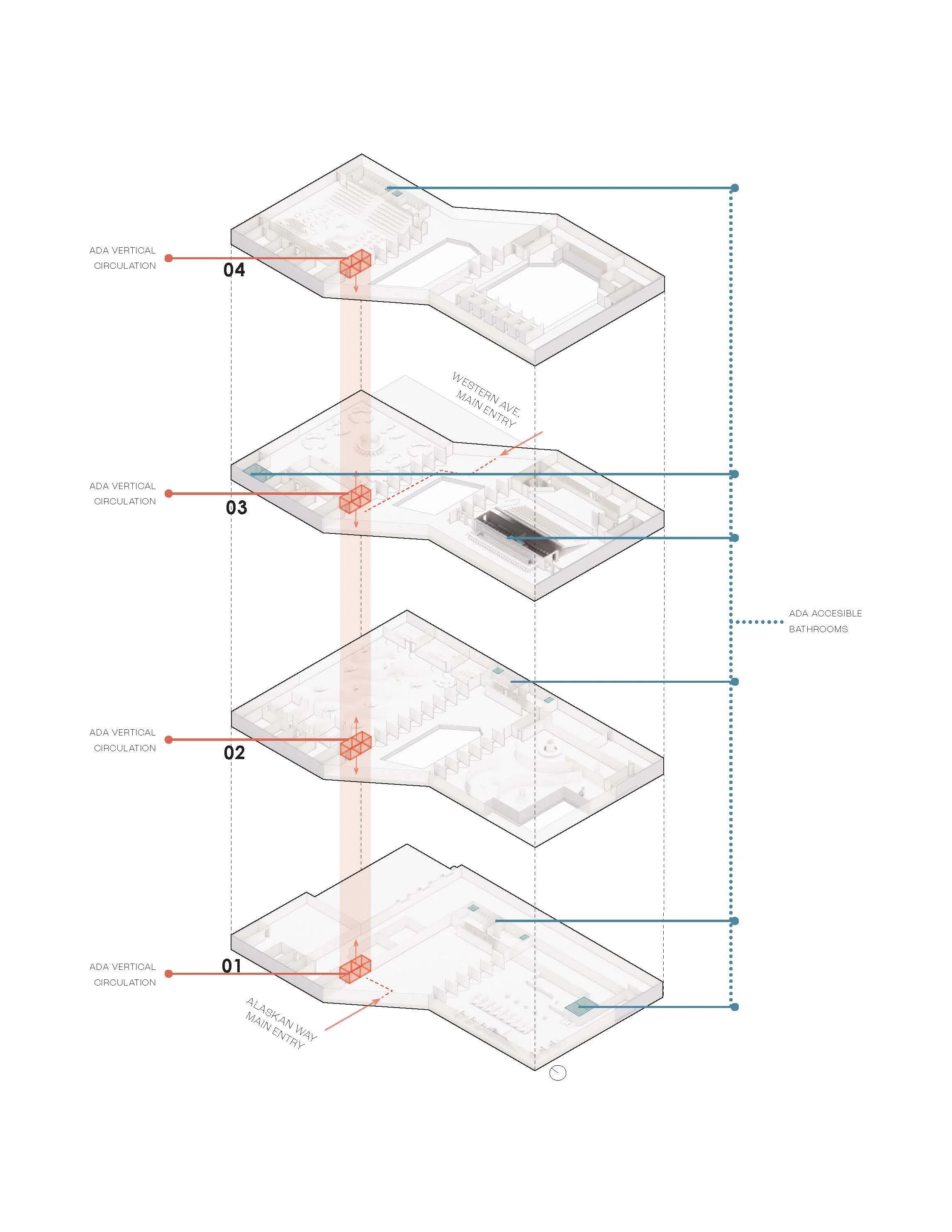

AXON DIAGRAMS
